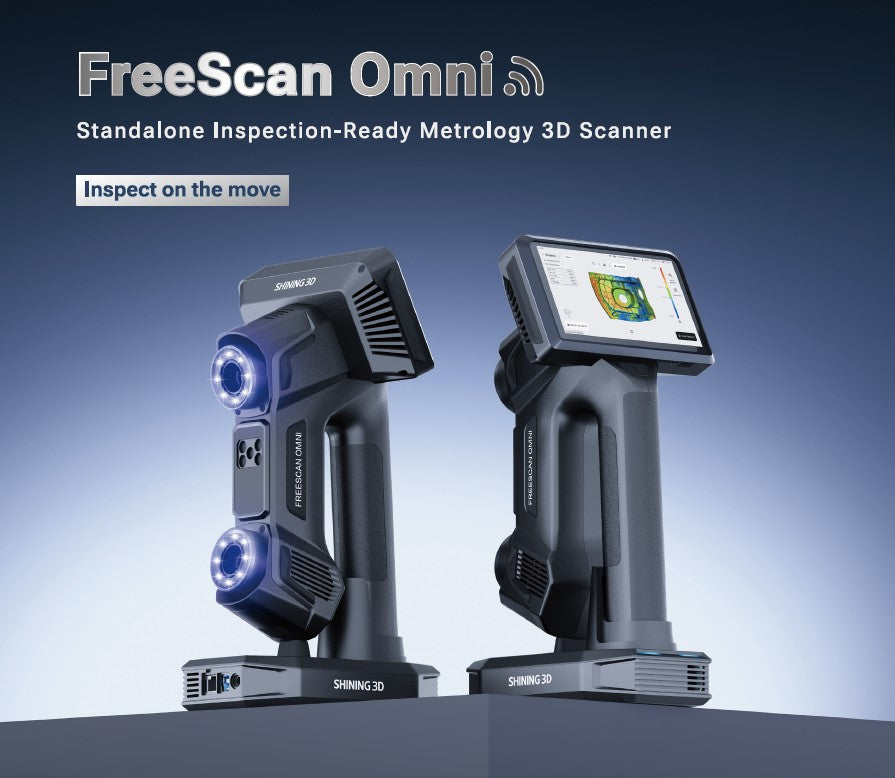

Ultra-Fast, Metrology-Grade Laser 3D Scanner
The FreeScan Omni is SHINING 3D’s most advanced handheld laser scanner, built for high-accuracy inspection, large-scale reverse engineering, and production metrology. With an ultra-wide scanning field and powerful blue-laser array, Omni captures massive amounts of data quickly — without sacrificing precision.
Metrology-Grade Accuracy

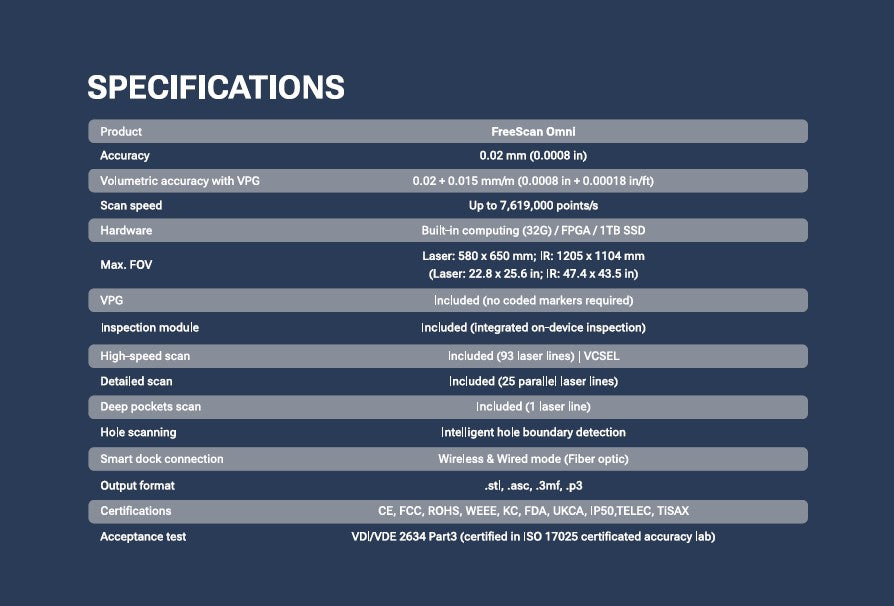

Engineered for precision inspection and dimensional verification, the FreeScan Omni delivers consistent, repeatable results suitable for quality control and engineering workflows. Ultra-accurate volumetric performance (≈0.02 + 0.033 mm/m) and up to 0.01mm resolution

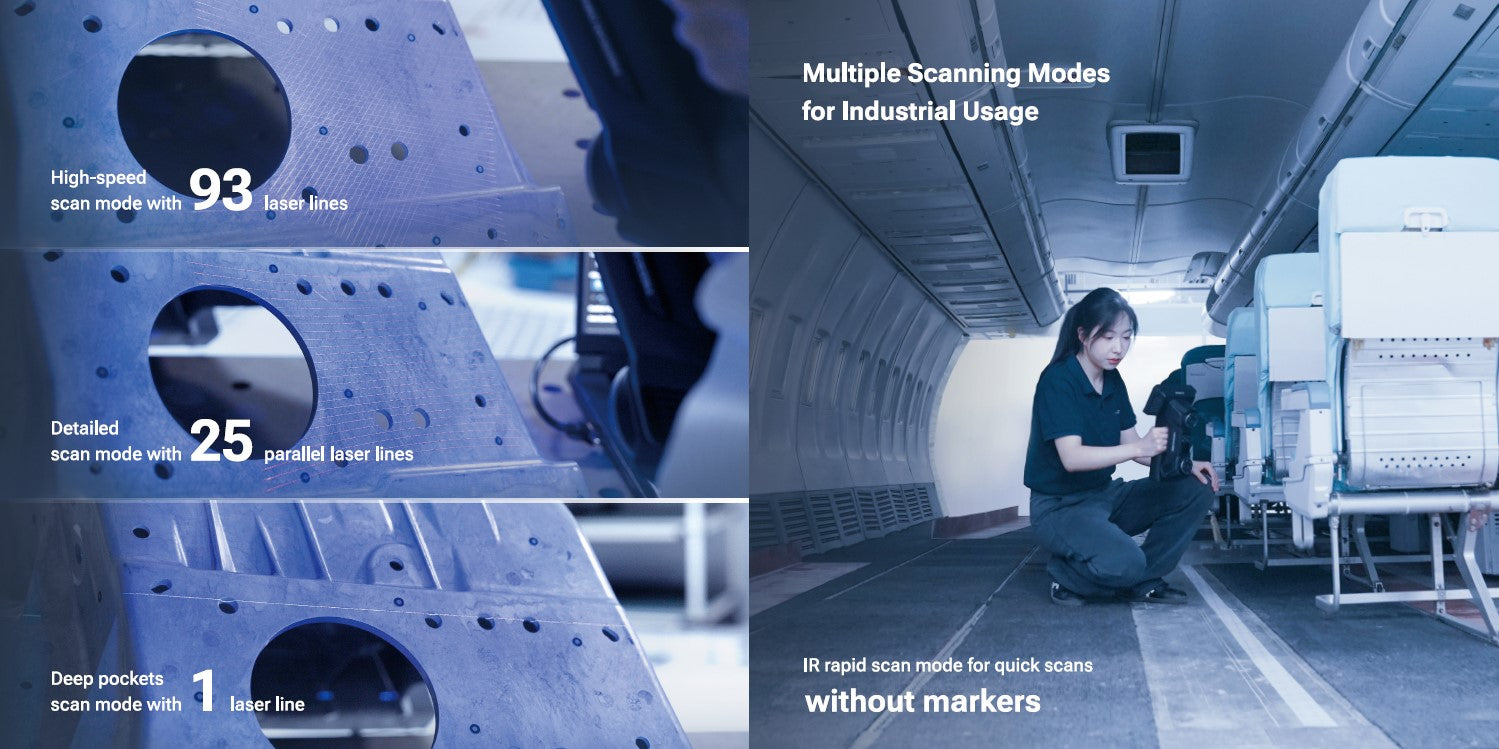

4 Scanning Modes for Maximum Flexibility
-
93 Crossed Blue Line Laser: Rapid Data Capture with Large Shapes
-
25-Parallel Blue Line Laser: Ultra Fine Detail Capture
-
Single Line Blue Laser: Deep Hole Detailed Scanning
-
IR VCSEL: Marker-free scanning on large surfaces
Switch modes instantly to match part size and surface detail.

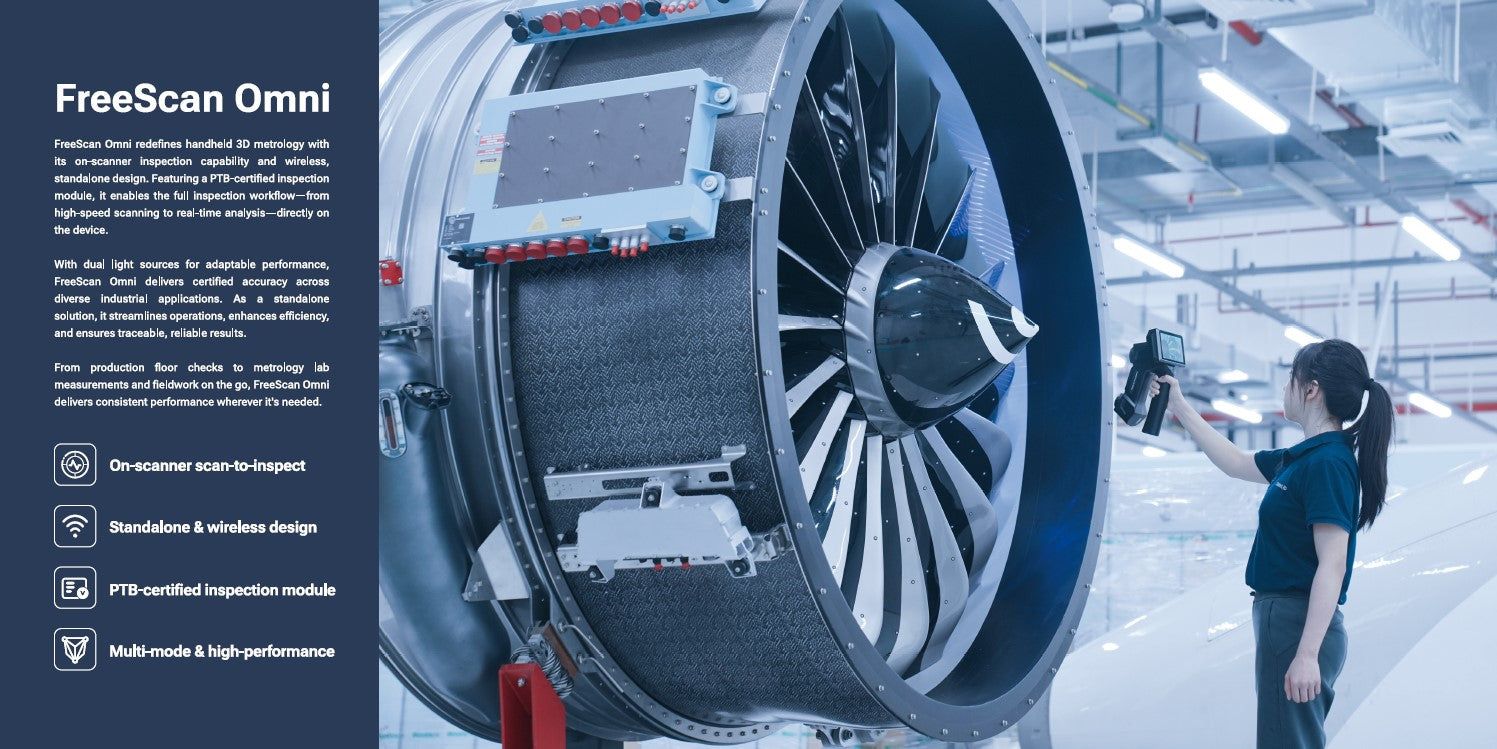

Built for Large & Complex or Detailed Parts
Ideal for automotive bodies, frames, castings, molds, fixtures, and welded assemblies — no fixed setup required.
Ultra-Wide Blue Laser Coverage
A dense blue-laser array captures complex geometry and large surfaces in fewer passes — ideal for production environments where time matters.
Handles Real-World Surfaces
Blue laser technology provides stable results on dark, metallic, and reflective surfaces with minimal preparation.

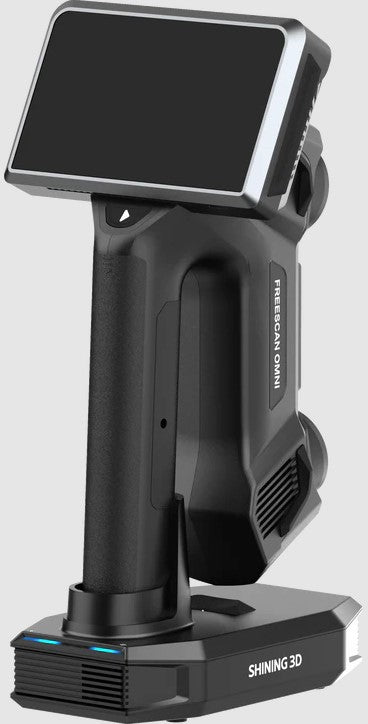

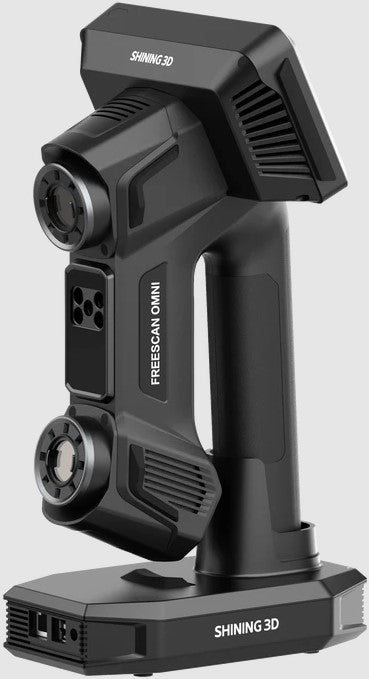

Portable, Shop-Floor Ready
Handheld and mobile, the FreeScan Omni allows you to scan parts directly on the shop floor, vehicle, or fixture — no lab required.

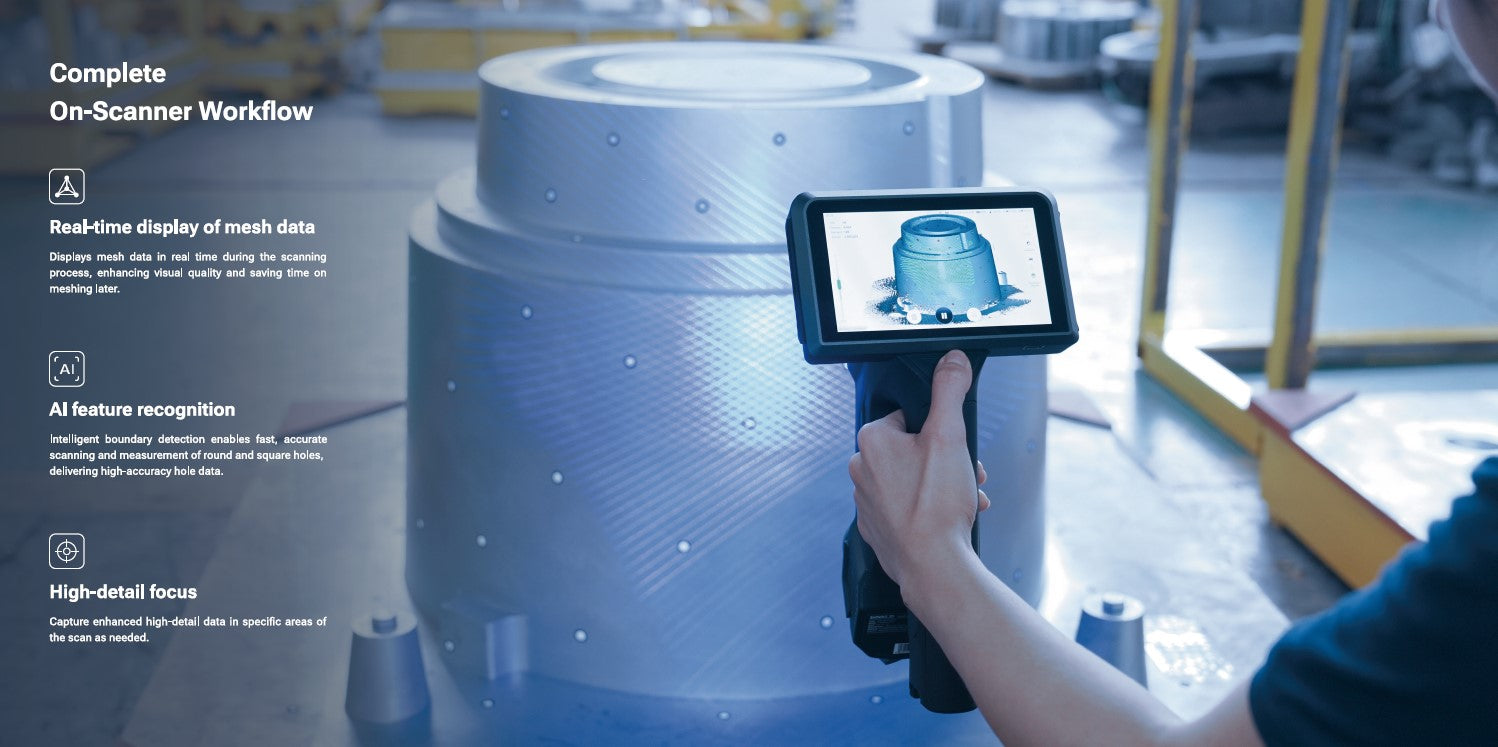

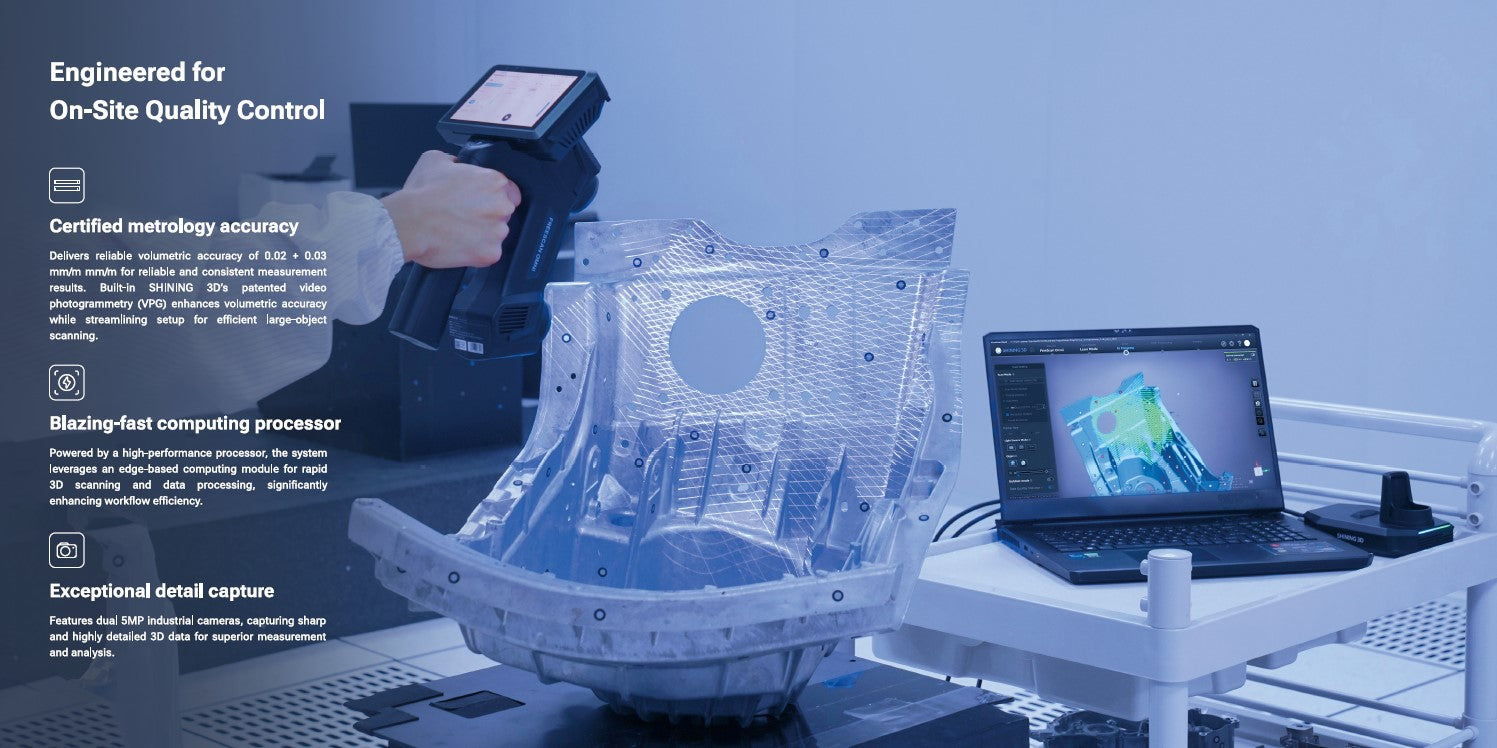

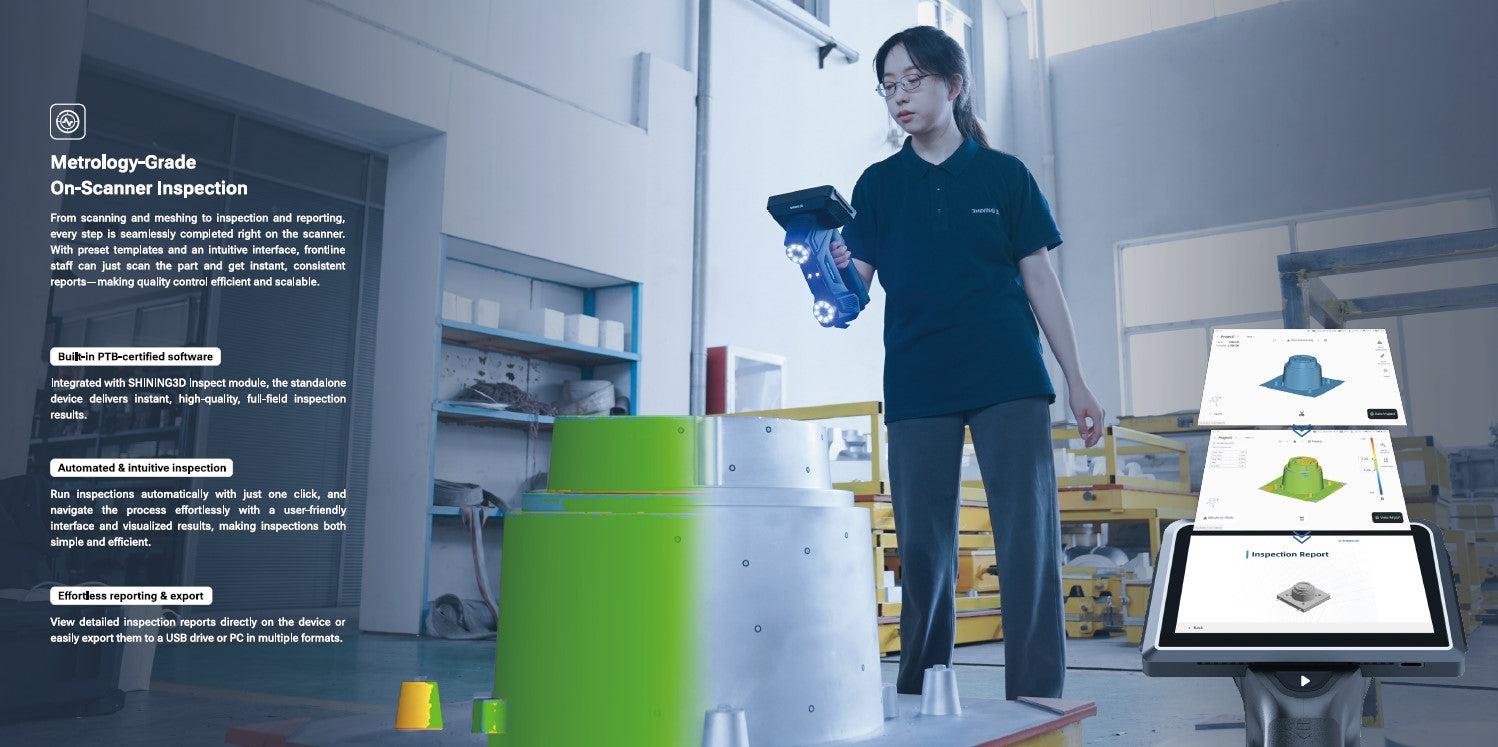

On-Scanner "Scan-To-Inspect"
Certified metrology accuracy with no PC needed, inspect and verify part gemoetry when with included inspection module.
Included Items with the Freescan Omni:
- Pelican Style Protective Travel Case
- Calibration Board

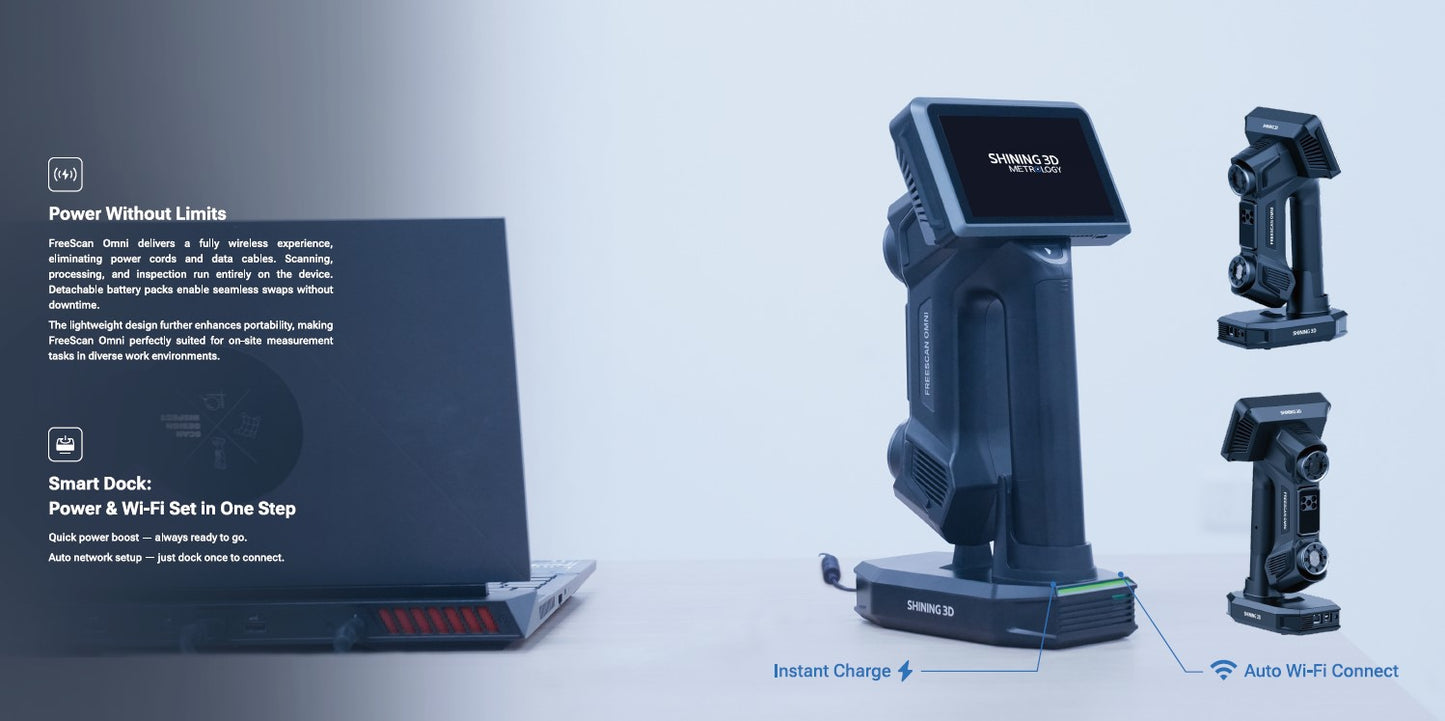

- Removable Rechargeable Batteries & Charger
- Freescan Scanning Software
