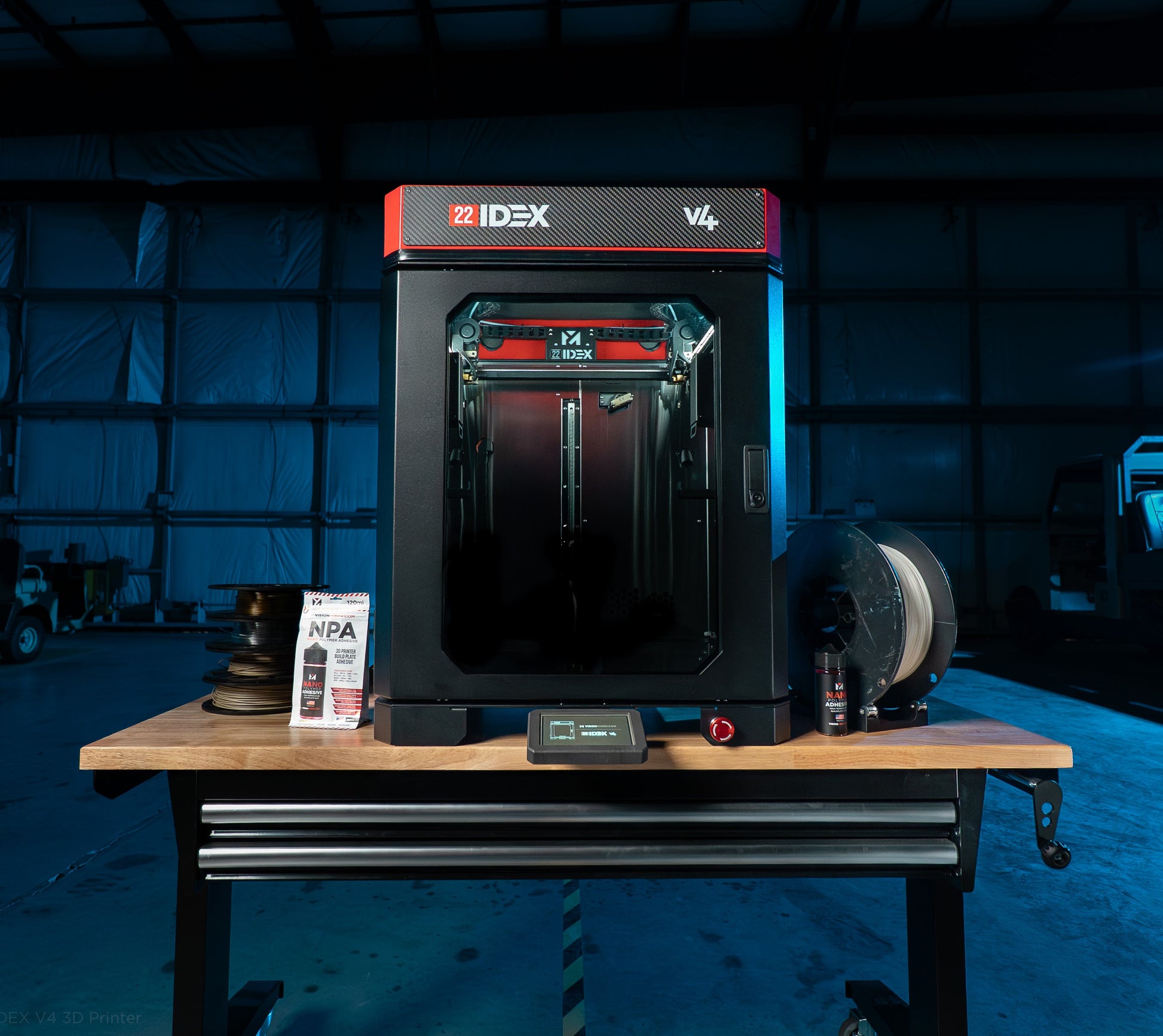

Ultra High-Temperature 3D Printer

Designed for the Shop. Designed for the Action Takers.

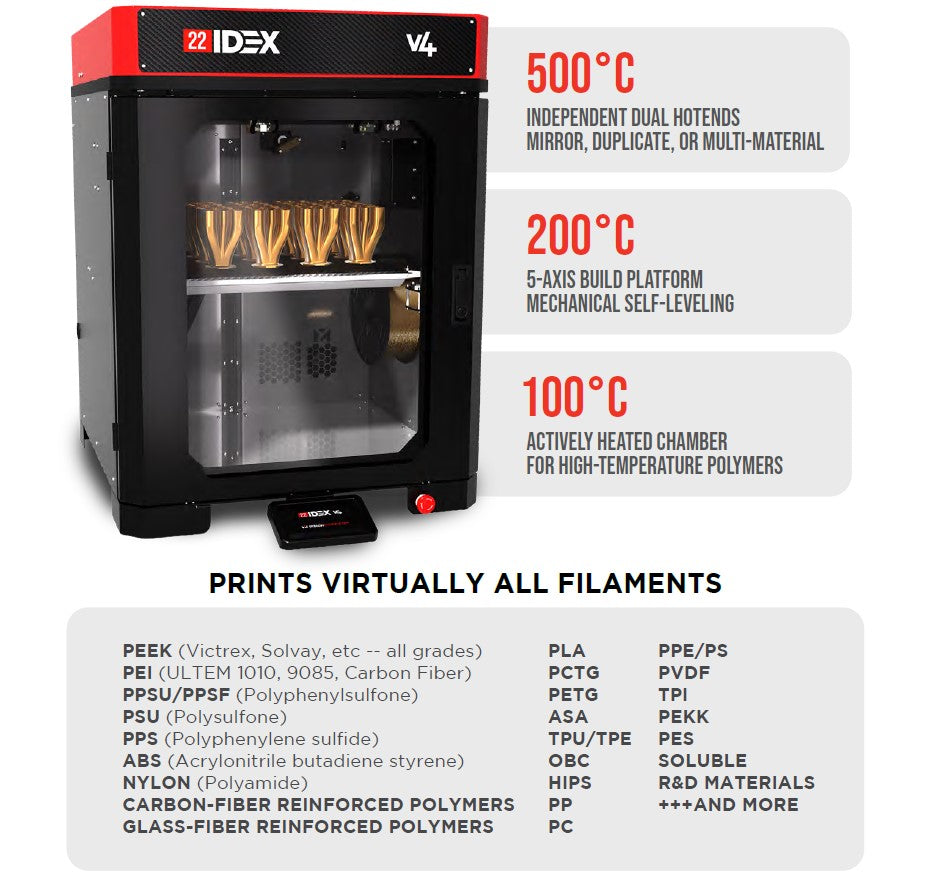

PEEK, ULTEM™, PPSU, AND MORE
Print the world’s strongest thermoplastics for Jigs, Fixtures, Tooling and more. Work with Carbon Fiber, Glass-filled and ESD-Safe polymers, to create strong, end-use parts.

Engineered for Industrial Performance

The 22 IDEX V4 takes high-performance FDM printing to the next level, combining dual independent 500°C extruders, a fully enclosed, actively heated chamber, and a 200°C triple-Z self-leveling build platform—all built on an ultra-rigid motion system designed for long-term precision. With an open-material ecosystem and advanced automation features, the V4 unlocks the true potential of in-house additive manufacturing for professionals working with PEEK, PEKK, ULTEM™, PPSU, and other engineering thermoplastics.

Quality Construction - Top-of-the-Line Components

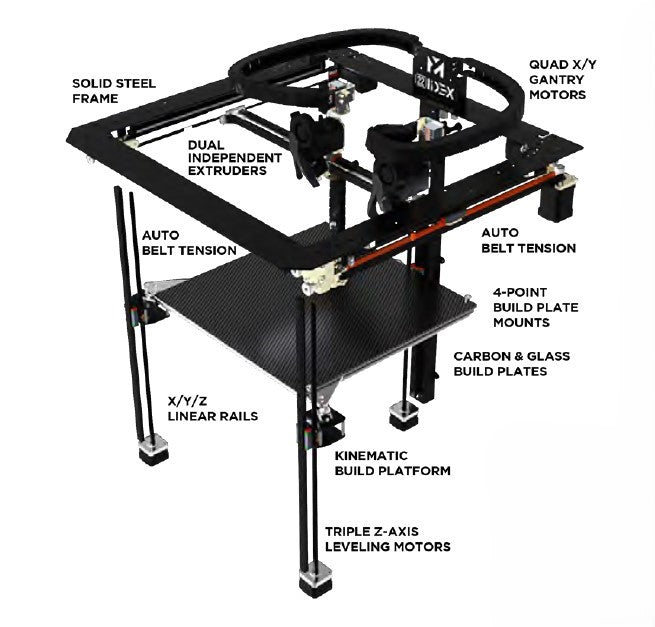

LINEAR RAILS, HIGH-TEMP BELTS & MOTORS - PRECISION MOTION SYSTEM

We were tired of poor construction and cheap components - when building the 22 IDEX, we ensured it was constructed only with the highest quality components, giving you the precision of an industrial machine on your desk. Robust high-temp stepper motors, linear rails, German wiring and industry leading electronics means you get consistent print quality and accuracy, while minimizing overall system maintenance. Using High-Temperature rails and extra-wide Kevlar Belts, the 22 IDEX stays in-spec with ease.

TRIPLE MOTOR Z-AXIS - TRUE SELF-LEVELING BUILD PLATFORM

Most printers require manual leveling, in addition to planar-offset or mesh-leveling. Not so, with the 22 IDEX - we've integrated three Z-Axis motors to physically level the build platform before each print, combined with a 144+point mesh leveling process to eliminate all guesswork. This means that your prints will start at the perfect height, every single time. It's a game-changer.

NON-PLANAR READY - 6 INDEPENDENT AXIS AND 5 DEGREES OF FREEDOM

The self-leveling bed and auto-squaring XY gantry not only makes great prints, but enables non-planar printing to an entirely new level -- you're not just buying any other 3D Printer, the 22 IDEX is prepared to take on a whole new world of multi-axis 3D Printing. All 6 axes are independent, giving you a full 5 degrees of freedom, meaning your machine is already prepared for the next generation of non-planar printing and slicing software, once it becomes available.

DUAL-GEARED EXTRUDERS - HARDWARE FOR CHALLENGING MATERIALS

Want to print Flexible materials? Go for it! Carbon Fiber and Glass Fiber filaments? No problem! These powerful extruders can handle not only the toughest filaments, but the softest ones too.

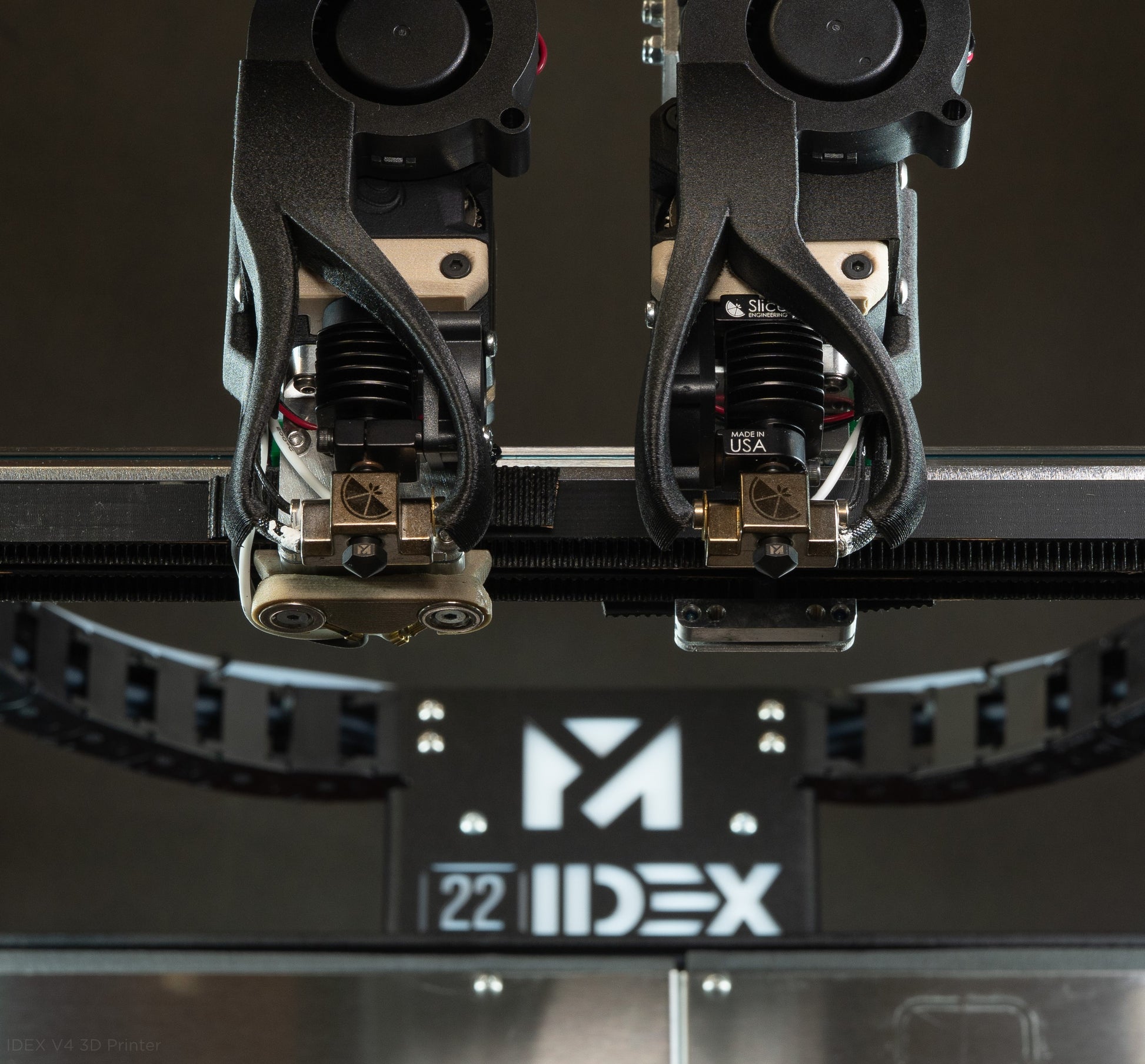

COPPERHEAD® TOOL HEADS - HARDWARE TO HANDLE THE CHALLENGING MATERIALS

Crank out more parts in less time, with one of the most consistently-flowing hotend designs available. On top of that, the 22 IDEX comes with hardened steel nozzles, standard. This means you can produce parts in CF Nylon, CFPEEK, or any other abrasive composites, straight out of the box.

Shipping Note: If ordering online, your shipping quote will be calculated and provided to you for final payment.
