Large-Format 3D Printing Changes What & How You Can Manufacture In-House

Additive Systems Powered by Real Engineering Workflows and implementation support from Contrive Design Innovations

Industrial grade with build area from 400mm, 600mm to 1,000mm

NYLON • ABS • ASA • PCTG • PLA +MORE

With dual extruders capable of 350ºC, an actively-heated chamber and ball-screw, auto-leveling 110ºC bed and more. Print production parts that used to be split into multiple units, in two or even one pring with the Mingda 3D printer line-up. These systems provids you with capacity for full-scale prototyping & production.

Get Help Choosing a Large-Format System

Specifications

Materials

Request a Quote

Build volume to suit your business

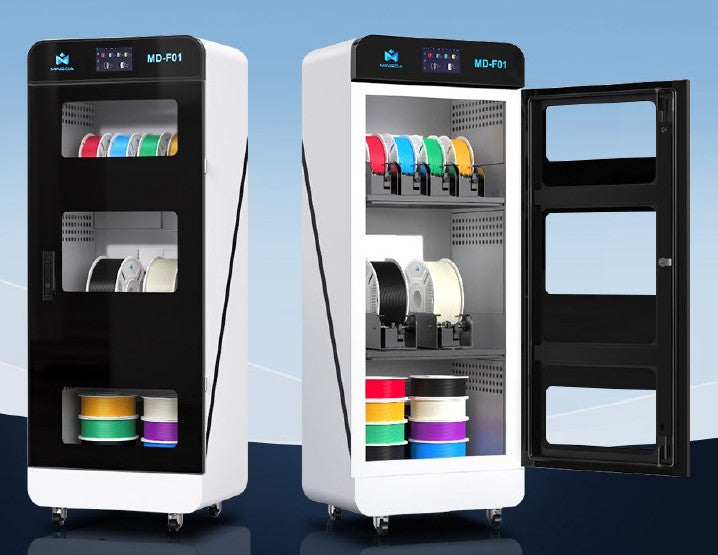

  • Mingda MD-F01 Filament Management

    Keep your large-format 3D printer running uninterrupted and professional-grade with the Mingda MD-F01 — an automated filament management system designed for high-performance filament storage, dehumidifying environmental control, and continuous print workflows with 1kg & 3kg spools.

    Order Now

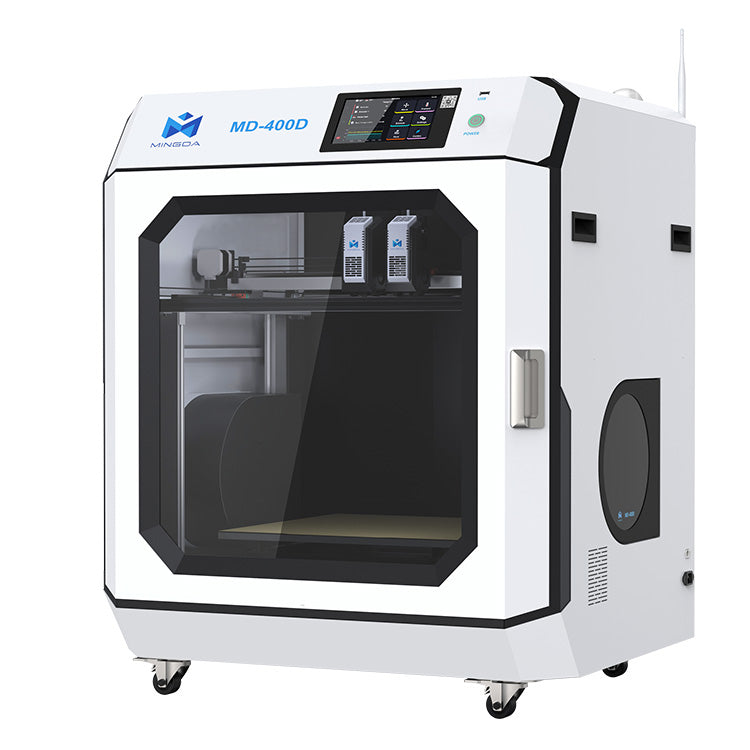

  • Mingda MD-400D IDEX

    Fully enclosed large format printing with a 400mm x 400mm x 400mm build volume paired with true IDEX (independent dual extruders) makes the MD-400D an ideal choice for multi-material printing, engeering prototyping, and mass production. Double your output of one machine with IDEX, allowing you to print duplicate or mirrored parts at the same time.

    Order Now

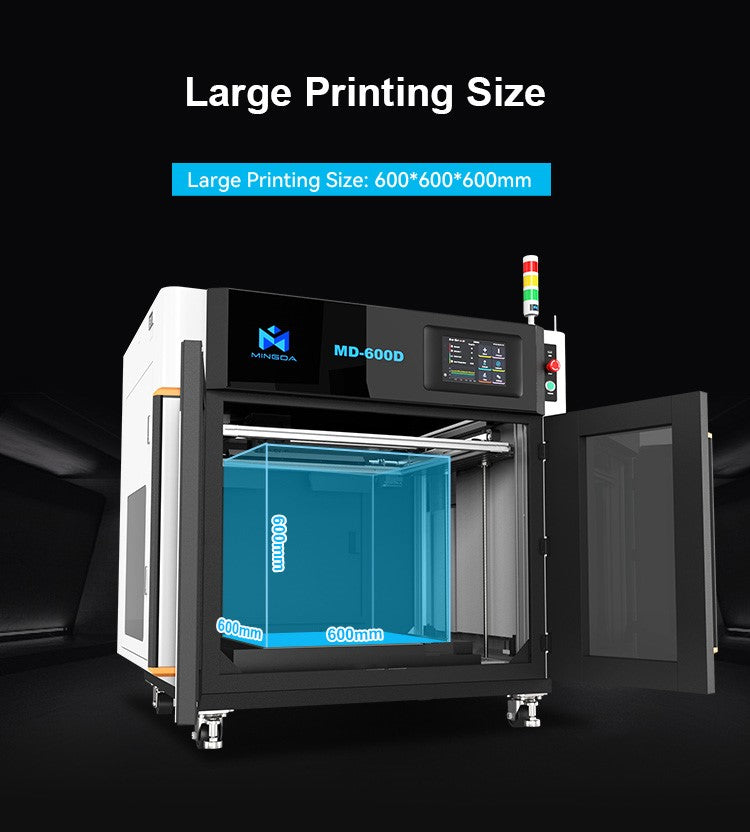

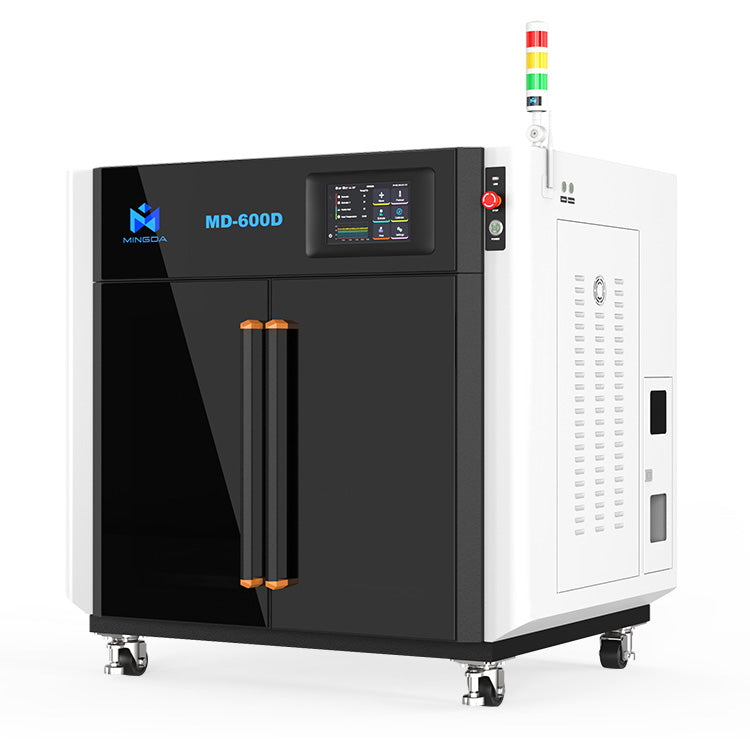

  • Mingda MD-600D Dual Extrusion

    Fully enclosed huge format printing with a 600mm x 600mm x 600mm build volume paired with a dual extrusion single head system & active chamber heating. The MD-600D is the ideal solution when large scale engineering prototyping and mass production is needed. Multi-material printing with the dual extrusion allows for efficeint production & post-processing of complex designs.

    Order Now

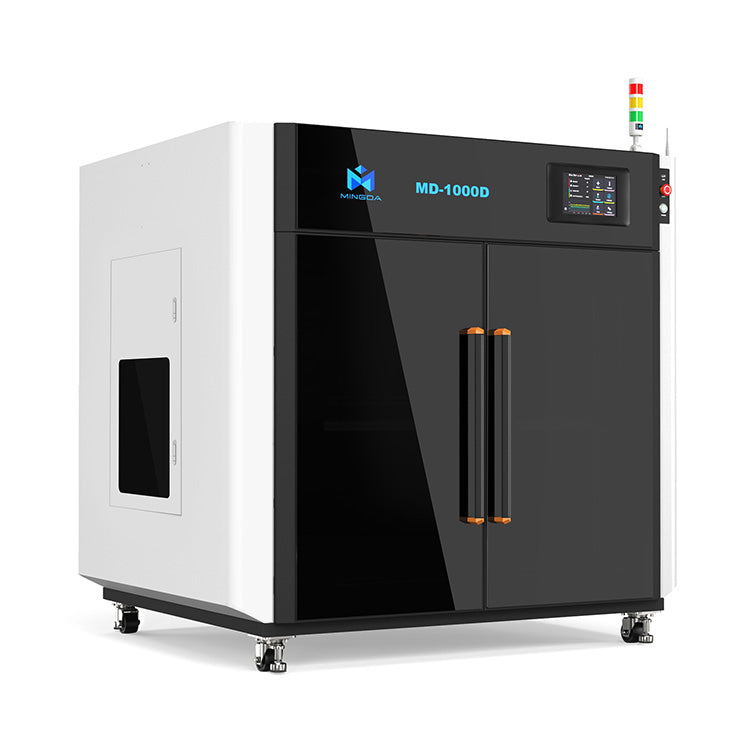

  • Mingda MD-1000D Dual Extrusion

    Fully enclosed massive format printing with a 1000mm x 1000mm x 1000mm build volume paired with a dual extrusion single head system & active chamber heating. The MD-1000D is the ideal solution when larger-than-large scale engineering prototyping and mass production is needed. Multi-material printing with the dual extrusion allows for efficeint production & post-processing of complex designs.

    Order Now

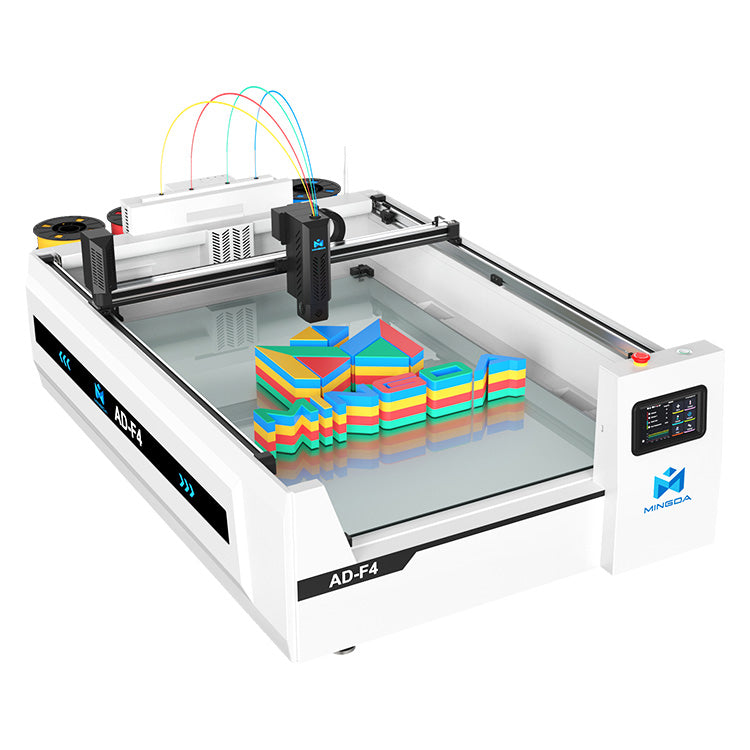

  • Mingda AD-F4 Quad-Color

    High-Speed Multi-Color Large-Format 3D Printer. A production-ready platform for signage, channel letters, architectural graphics, and oversized parts — the AD-F4 combines high throughput, large build area, and an intelligent four-color feeding system to deliver vibrant, precise prints on an industrial scale.

    Order Now

Large Format 3d printing

Do it the EASY way with Mingda 3D

Large format 3D printing doesn't have to be difficult, frustrating or time consuming just to get a print started. Mingda 3D takes the guess work out of the setup with easy to execute calibration processes, auto-leveling features, modern OrcaSlicer based software and intuitive user interface on machine and in slicer.

OrcaSlicer

Modern user interface, integrated material calibration tools, and strong community backing

Auto Calibration

Completely automated XYZ calibration with intuitive & clear processes

Touchscreen UI

Large high-definition touch screen interface on machine for easy use. 7-inch for MD-400D model & 10-inch for MD-600D/1000D models

Dual Extrusion

Easy to use dual extrusion for efficient prototyping & production utilizing multi-material benefits

We believe the tools in our business should work for us...not us work on them...

Effieceint, reliable & repeatable are what we stand behind and why we use Mingda 3D printers in our printing & production services internally.

Let's Talk About Which Printer Fits Your Needs

Performance Materials, Straight Out of the Box

LARGE FUNCTIONAL parts. Engineering Polymers.

Parts you can sell, materials you can print jigs and fixtures from, vacuum molds, press brake tooling - if its large and can be 3D printed, there's a good chance you can do all that and more, with a Mingda MD series printer.

  • Large scale rapid prototypes for automotive, aerospace, industrial, architecture, interior design, ...etc
  • Automotive-grade replacement parts, tooling, fixtures
  • Molds & Fixturing for complex geomteries

Unique full scale interior design, to industrial solutions for R&D - whether you're a one-man operation, or a 20,000+ employee company, this machine can get your job done.

Click Here for Full Specs

Hardware for Professionals

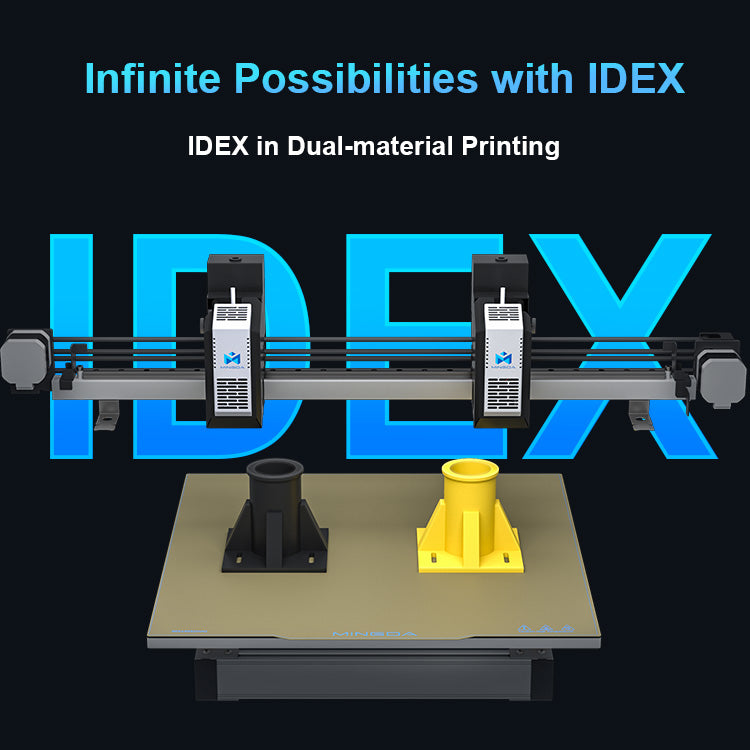

MD-400D IDEX

MD-400D IDEX

Independent Dual-Extruder Hotends

Unlike other machines, BOTH hotends reach the full 350ºC, enabling multi-material, duplication mode, mirror mode, and full use of supports - soluble and otherwise.

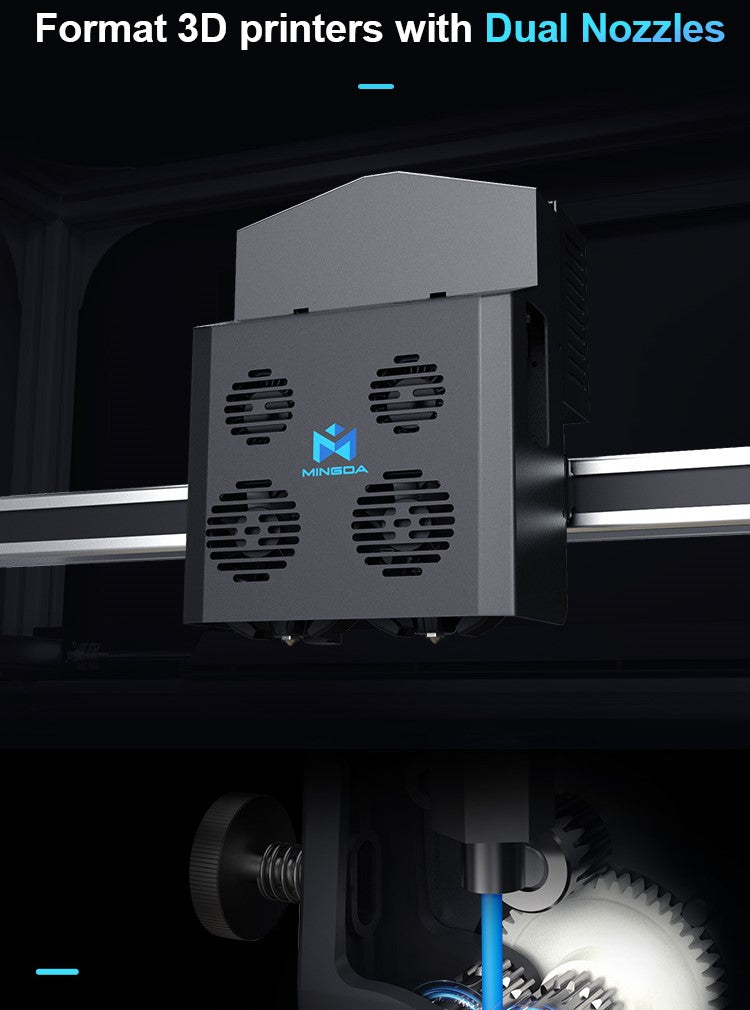

MD-600D/1000D Dual

MD-600D/1000D Dual

True Self-Leveling Build Platform

Never manually level your bed again. Triple Z-Axis motors enable true self-leveling of the build platform, combined with 128-point+ mesh leveling (technically unlimited points), so the hotends will compensate for any variation in the build surface. On top of that (literally), the QUAD-motor XY gantry squares itself -- your parts will maintain accuracy over time, without having to constantly recalibrate.

Fully Enclosed

Fully Enclosed

Large Format Enclosure

Performance thermoplastics hate drafty uncontrolled temperature swings while printing. A fully enclosed & actively heated build chamber keeps your printing consistent & reliable.

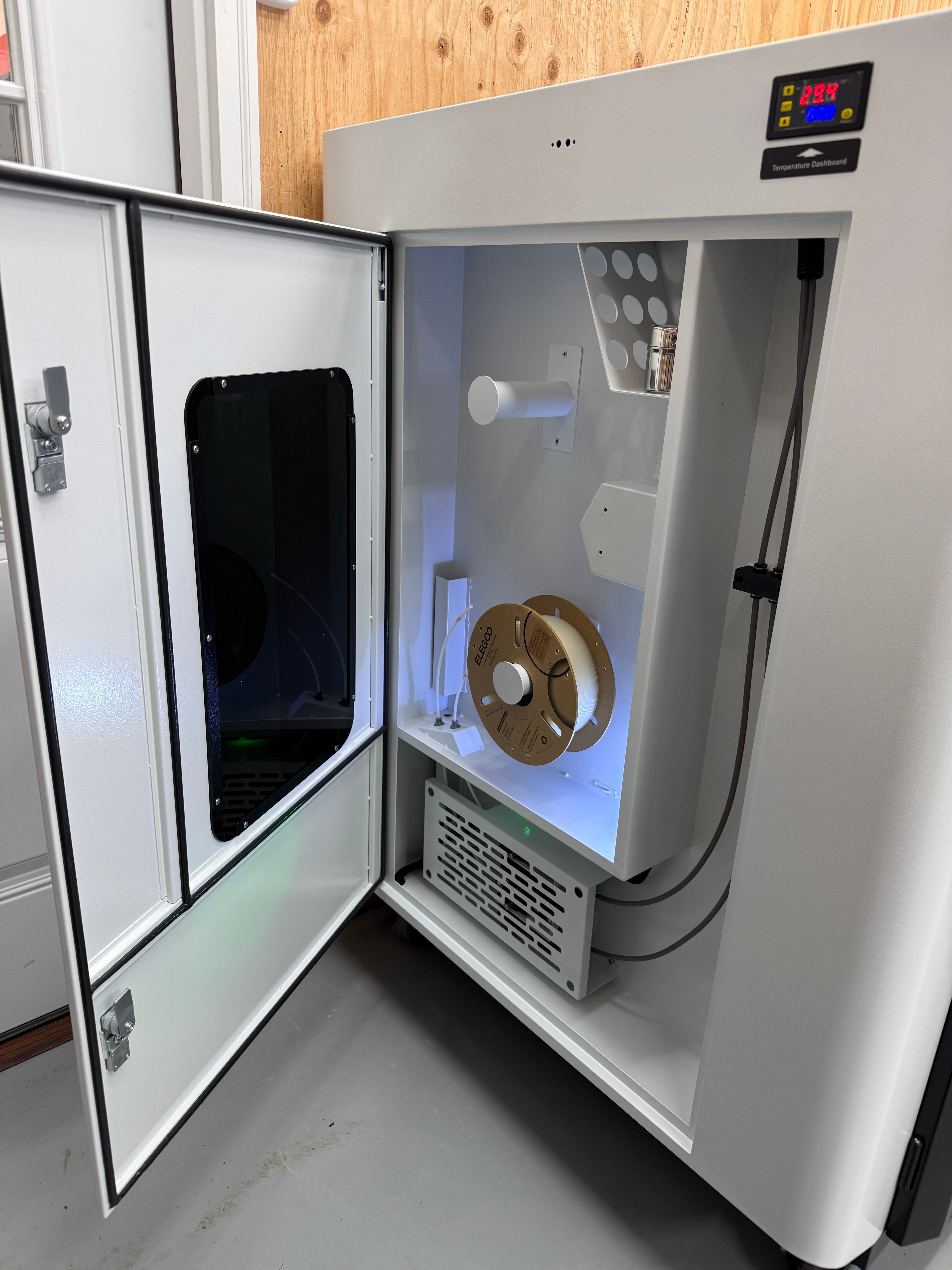

Heated Filament Management

Heated Filament Management

1.75mm Open-Filament FFF/FDM System

Standardized materials for prototyping to engineering grade in FAR 25.853, UL94 V0 rated materials. Stored in the integrated filament cabinet thats sealed and actively heated to maintain your materials during extended printing times.

Touchscreen UI

Touchscreen UI

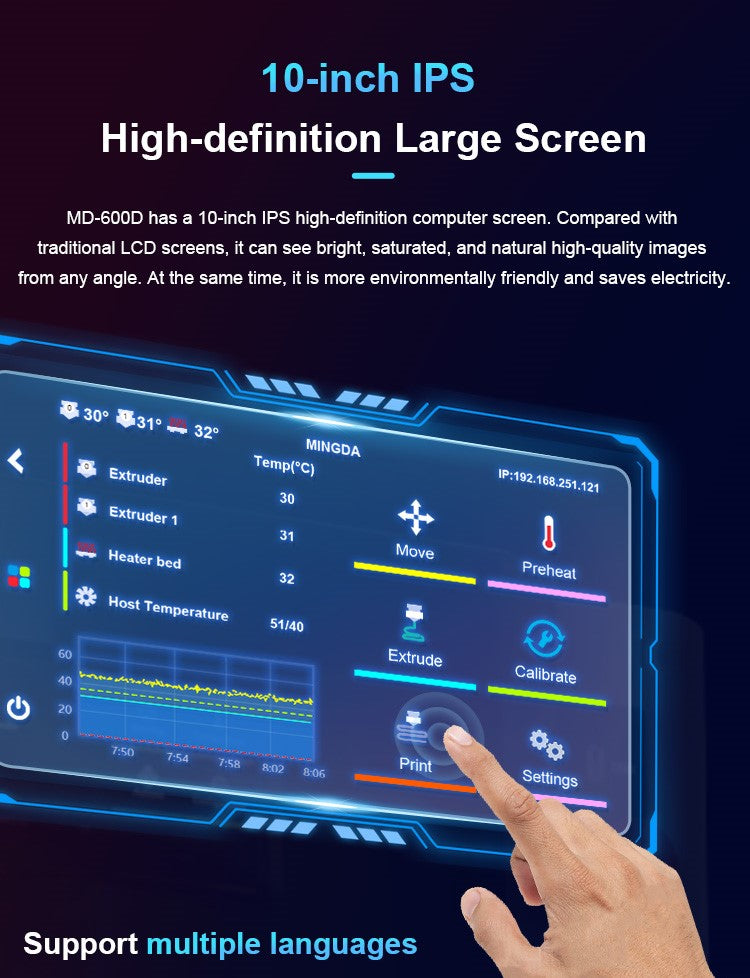

High Definition Touchscreen

No clunky buttons or always needing a computer nearby. A clear and intuitive touchscreen directly on machine makes managment easy. Model MD-400D features a 7-inch screen & Model MD-600D/1000D features a 10-inch screen

WHAT FILAMENTS CAN YOU PRINT ON THE MINGDA MD SERIES INDUSTRIAL PRINTERS?

Rapid prototyping to engineering grade materials. We're talking about functional polymers -- whether you're focused on Carbon Fiber Nylons, ASA/ABS or rapid prototyping PETG & PLA; the Mingda MD Series has you covered, and in large format:

Polymer Class

Amorphous

Semi-Crystalline

HIGH-PERFORMANCE POLYMERS

330ºC+

  • PPS
  • PPA

ENGINEERING-GRADE POLYMERS

220ºC+

  • PC (Polycarbonate)
  • TPU
  • PC/ABS

  • PET
  • PA12
  • PA6
  • HtPA

COMMODITY-GRADE POLYMERS

180ºC+

  • ABS
  • ASA
  • HIPS
  • PETG

  • PP
  • PLA
  • PCTG
on metal

AMERICAN SERVICE & SUPPORT

We’re here to help, and we mean that. Your success with this machine matters to us, because we use the same equipment in our own shop every day.

Our team is cross-trained on everything we build and sell, so the person who picks up the phone is usually someone who can walk you through a solution right away. And when something does require deeper expertise, you’ll be connected directly with one of our additive technicians—not a call center or a scripted support line.

You’ll always talk to a real person who understands the industry and has hands-on experience solving real-world problems. Most questions can be answered quickly through our documentation and video tutorials, but when you need us, we’re available by phone, email, or video to get you back into production as fast as possible.

We won’t overwhelm you with basics, and we won’t disappear when you need help. Just knowledgeable people who care about the work and are here to support you.

Get in Touch Today

BUILT FROM STEEL

MADE USING TOP-OF-THE-LINE COMPONENTS

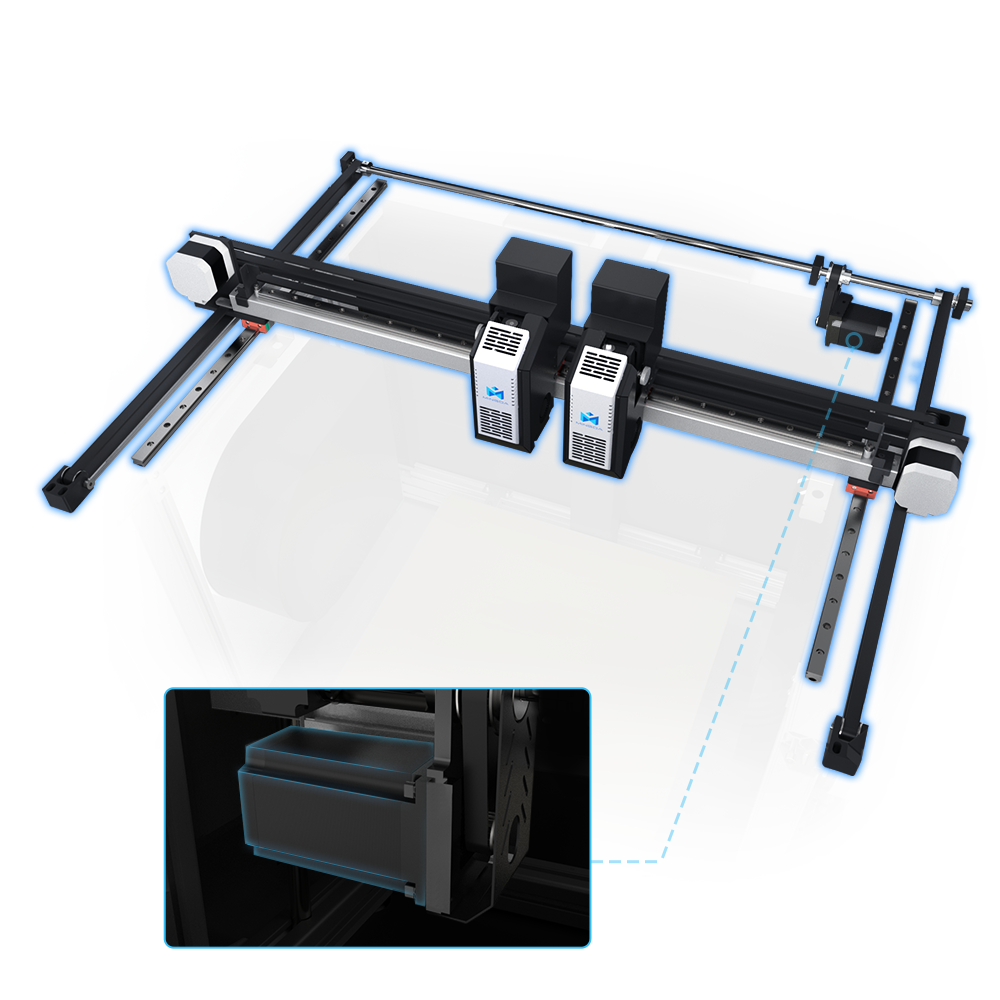

MD-400D XY LINEAR RAILS

MD-400D XY LINEAR RAILS

Linear-Rail Motion System

Precision linear rails used to control the IDEX XY-system, giving you the precision of an industrial machine on your desk. Robust stepper motors, linear rails, quality wiring and electronics means you get consistent print quality and accuracy, while minimizing overall system maintenance.

MD-600D/1000D Linear rails

MD-600D/1000D Linear rails

Robust XY Linear Rails

Heavy duty extruded aluminum guide rail design with integrated linear rails and large closed-loop stepper motors manage the XY-axis control for the dual extruder hotend. Strong & cost effective, this provides the MD-600D & MD-1000D the capabilities to handle prolonged huge prints at price that makes sense.

Fully Enclosed

Fully Enclosed

Huge Volume Enclosed Chamber

Typically when you want huge chamber volumes of 600mm or greater you have to compormise with a open air design. A heavy gauge steel enclosure insures the Mingda MD-Series printers are more consistent and reliable with active chamber heating.

MODERN-PROVEN TECH

  • STANDARDIZED HARDENED STEEL NOZZLES

    OEM or Aftermarket Options

    Crank out more parts in less time with proven technology, repeatable results and the option to fine tune your print result with optional 0.2mm, 0.4mm, 0.6mm, & 0.8mm nozzles in various nozzles materials -- brass, stainless steel, & hardened steel.

  • PRE-CONFIGURED SLICER, OR USE YOUR OWN

    OrcaSlicer, with Integrated Device Interface

    The Integrated Ethernet, and modular wifi (included) web interface and standard Klipper firmware makes the machine easy to control, from anywhere in the shop. Use your workstation, laptop, tablet or phone to control the printer -- using macros, or custom configurations you develop for your own needs. Plus, we offer pre-configured profiles for PrusaSlicer, including materials like CF-Nylon, ASA/ABS, PETG, PLA+ etc, and you're always able to use whichever slicer you prefer.

  • SMART TECH SECURITIES

    Power Loss Resume Printing, Automatic Filament Detection

    63 hours into a 120 hour print...the last thing you want is to loose the entire print due to a power loss or forgetting to change the filament spool. Smart features give you confidence for those multi-day prints.

Detailed Specifications

Printing Technology

Fused Filament Fabrication, or Fused Deposition Modeling (FFF, FDM)

Build Volume

  • MD-400D - 400 x 400 x 400 mm
  • 64,000 cm^3
  • MD-600D - 600 x 600 x 600 mm
  • 216,000 cm^3
  • MD-1000D - 1000 x 1000 x 1000 mm
  • 1,000,000 cm^3

Build Platform Material

• PEI Buildplate Sheet w/Magnetic Attachment

Motion System

  • Linear Rails - MD-400D
  • Extruded Rails - MD-600D/1000D
  • Ultra Wide Belts
  • Heavy Duty Stepper Motors

Build Platform Leveling

• Auto-Leveling & Checking

Tool Heads

• Migda Extruders
• VulcanFlow Hotend
• 0.6mm Hardened Steel Nozzles
• Filament Runout Sensors

Speeds

  • Maximum Travel Speed: 300mm/s
  • Printing speeds depend on material.
  • Up to 200mm/s

Nozzles

VulcanFlow "Unicorn" Style

Included:

• Hardened Steel 0.6mm

Available Options: 0.4mm, 0.6mm, 0.8mm, 1.0mm

VOC/HEPA Fume Extraction

  • Integrated solution for clean air
  • Filter Out 99% of VOCs
  • Filter Out 99% of Particles Down to 0.3µm

Power Usage Specs

  • MD-400D
  • 110v or 220v Operation
  • 800w
  • MD-600D/1000D
  • 220v Operation Only
  • 2400w
